Organs Tri-Gas Mixers

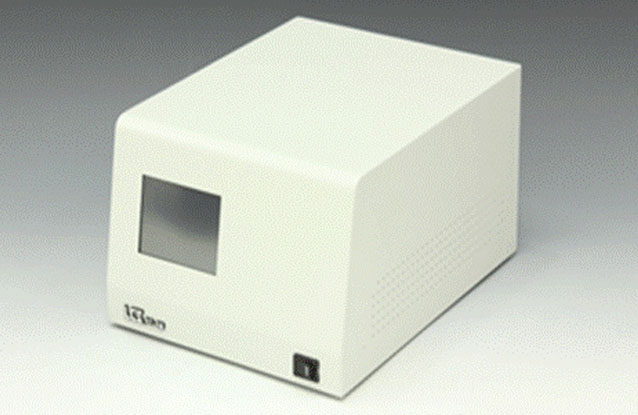

FC-7
Automatic CO2 / O2 / N2 mixer
- Automatic O₂ / CO₂/ N₂ Gas mixing and supply system.
- Uses a PID control system for precise control of the O₂ and CO₂ concentrations.
- Produces mixed gas from 100％ CO₂, 100% O₂ and 100% N₂ gas cylinders.
- Produces very low concentrations of O₂ mixed gas (min. 0.2% ~ 20%)
- Uses fine solenoid valves.
- Has a reservoir for gas ripening.
- It is possible to regulate the concentration, program concentration gradients and record the gas concentrations over time using CCP ver 3.8 software or MetaMorph software.
- LCI will custom-make the FC-7 which can adjust higher flow rate of mixed gas and composition of O₂.
Specifications :
| Sensor | O₂ | HS-1 O₂ Sensor |
| CO₂ | NDIR CO₂ sensor | |
| Control Range | O₂ | 0.2 ~20 % |
| CO₂ | 1 ~ 20 % | |
| N₂ | Max 200 ml/min | |
| Control Method | O₂ | PID, solenoid valve |
| CO₂ | PID, solenoid valve | |
| N₂ | Analogue flow meter (or MFC) |
Model No. Product :
| FC-R-30 | FC-7 (Automatic CO2 / O₂ / N2 mixer) |
